Home Complete lines Hengli HL 1200 BS3A coil cutting line

all markets (3-piece) ● coilcutting & scroll
Hengli HL 1200 BS3A coil cutting line

About this complete line

Almost NEW cut-to-length line for cutting tinplate. For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. The electric control components use whole set of Mitsubishi control system. 1) Sheet width range: 500-1200mm 2) Sheet thickness range: 0.125-0.525mm 3) Sheet length range: 500-1200mm 4) Max coil weight: 13.5 T 5) Nominal coil I.D.: 420mm 6) Mandrel expansion range: 390-440mm 7) Coil O.D.: 915-1800mm 8) Max cutting strokes: 70 SPM 9) Max bundle weight: 2100kg 10) Max bundle height: 460mm 11) Length tolerance range: ≤±0.15mm 12) Diagonal tolerance range: ≤±0.18/1000mm 13) Power consumption: about 42kw 14) Air consumption: about 1m3/min

Purpose coilcutting & scroll Functions uncoiler shear sheet stacking box Market all markets (3-piece)

Specifications

CazProductNumber
CPN
 6597
Name Hengli HL 1200 BS3A coil cutting line
Speed (up to) 70 sheets per minute
Sheet width max. 1200 mm
Request a quote Product sheet
Downender, loading cart, uncoiler
Fullscreen Slideshow
‹

All media

9 images

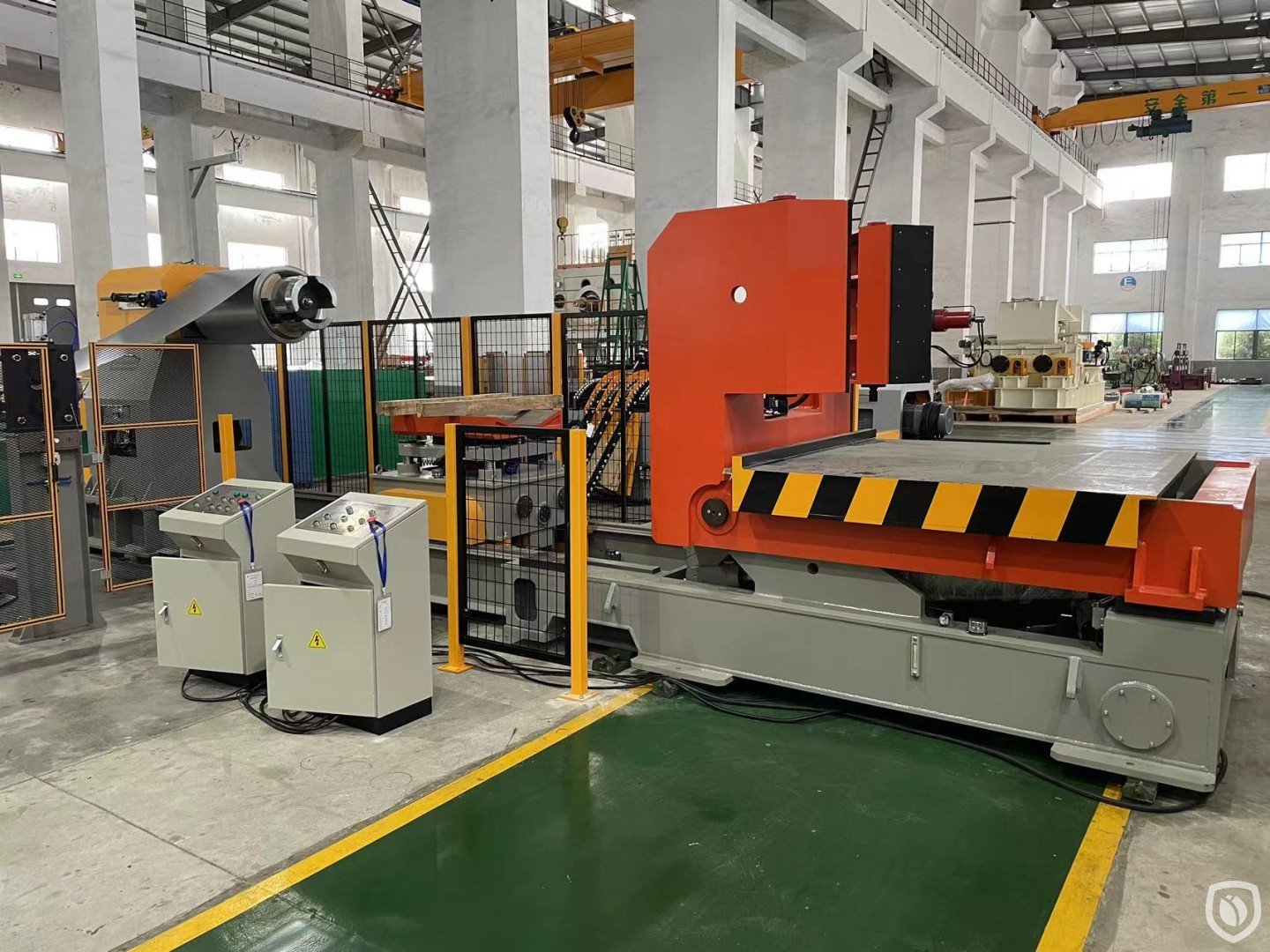

Downender, loading cart, uncoiler
Downender, loading cart, uncoiler

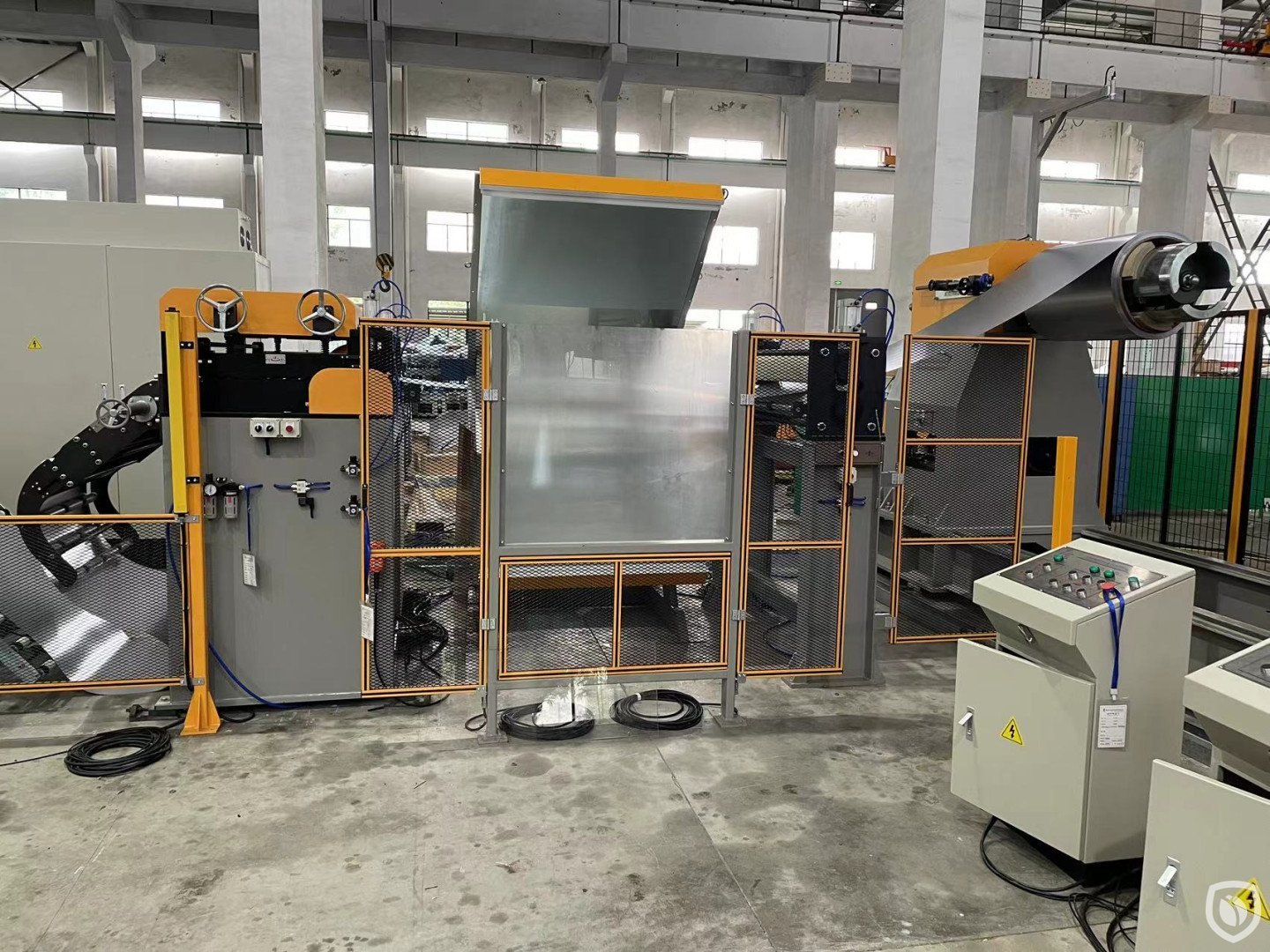

Visual inspection and straightener
Visual inspection and straightener

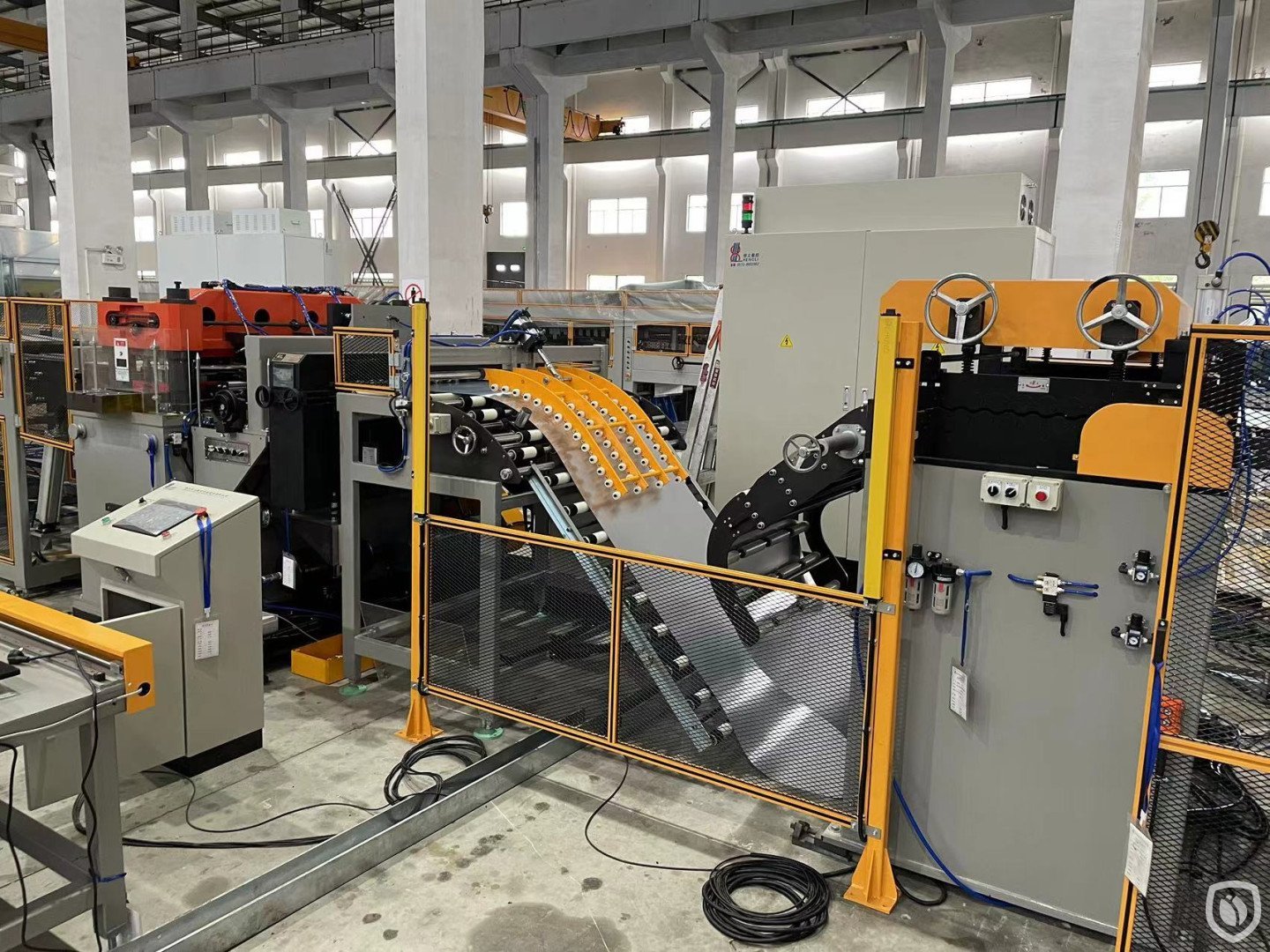

Loop area, transition stander, pinhole detector
Loop area, transition stander, pinhole detector

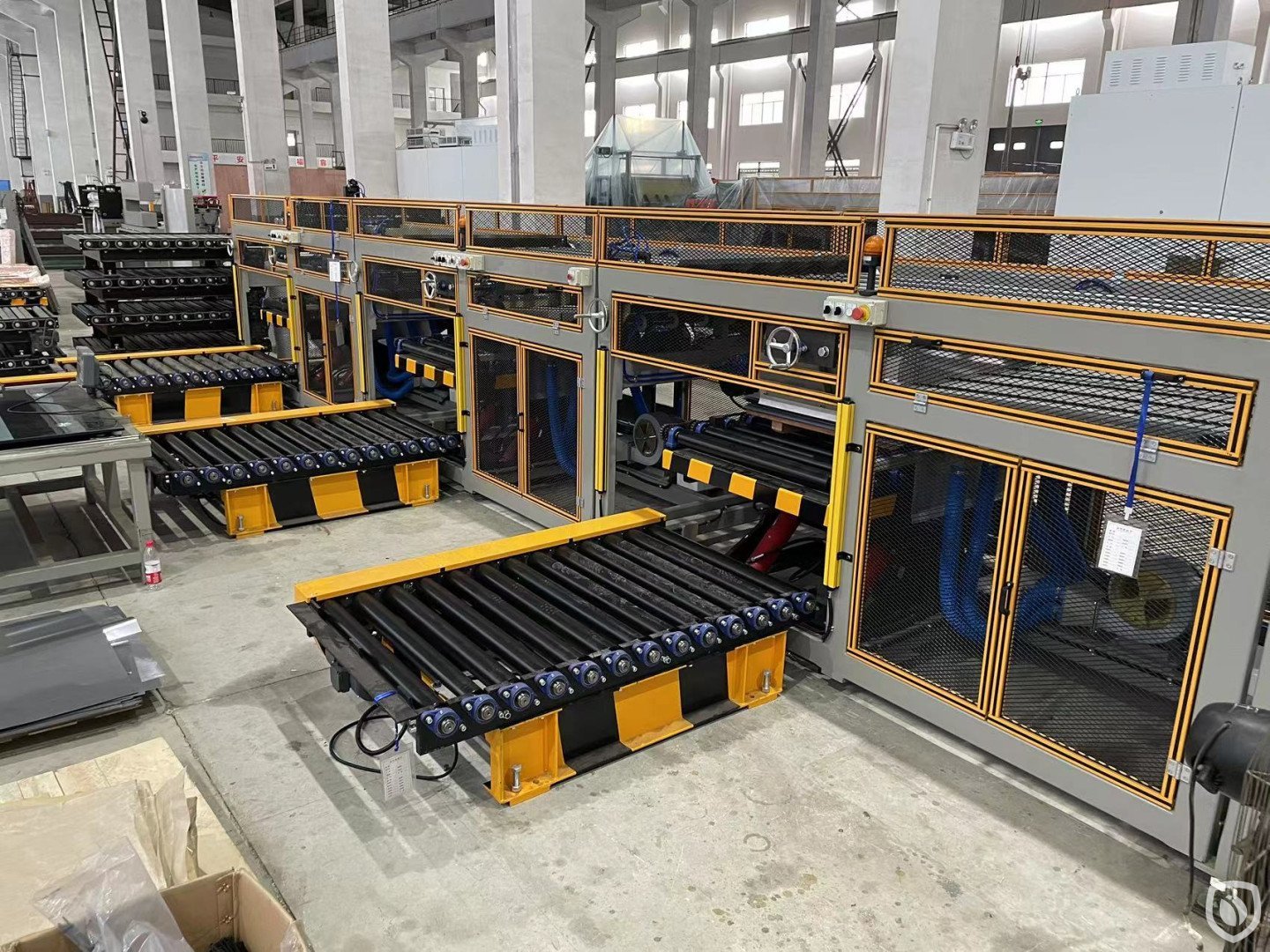

Three (3) stackers, roll conveyor
Three (3) stackers, roll conveyor

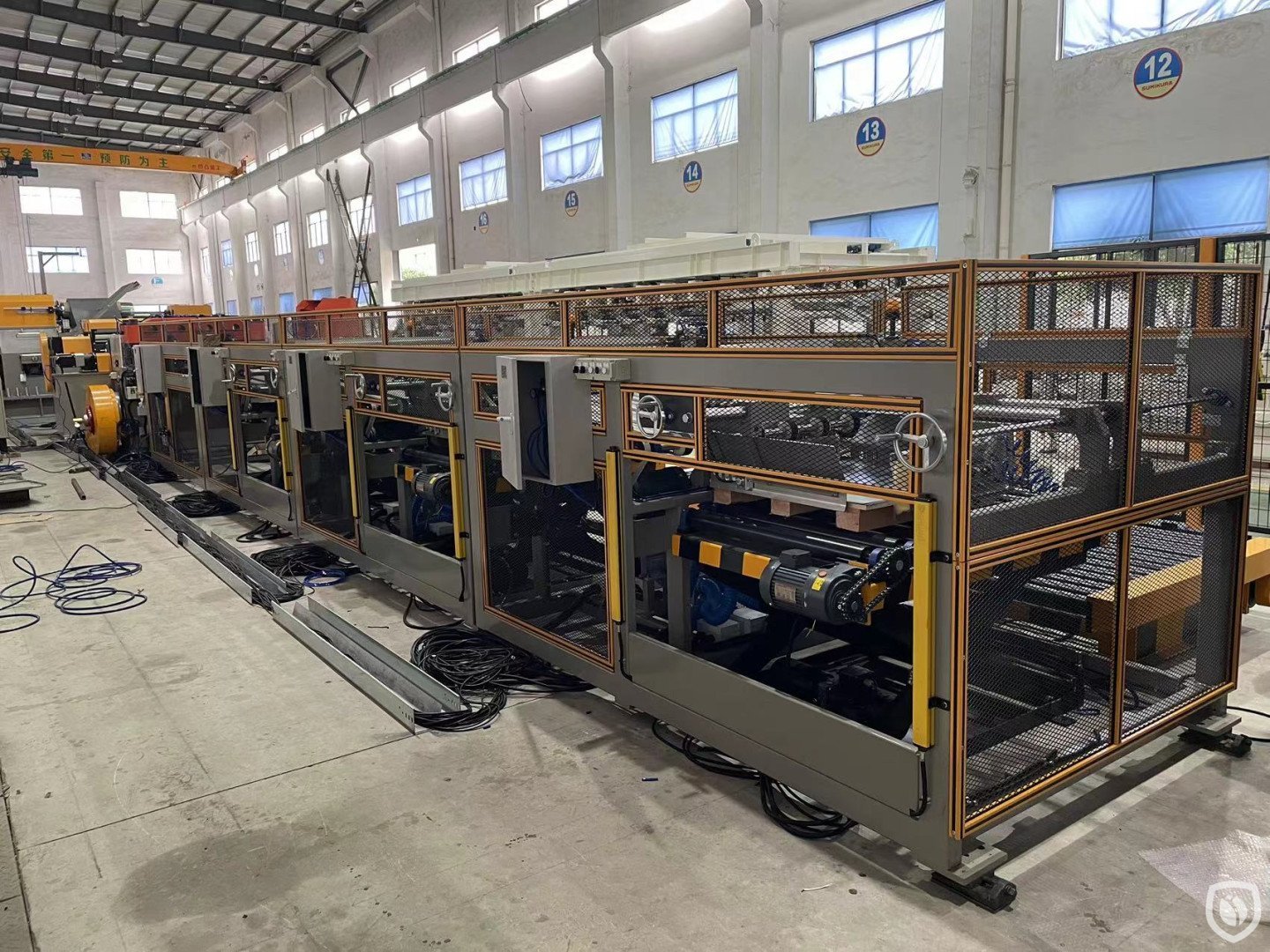

Back side view
Back side view

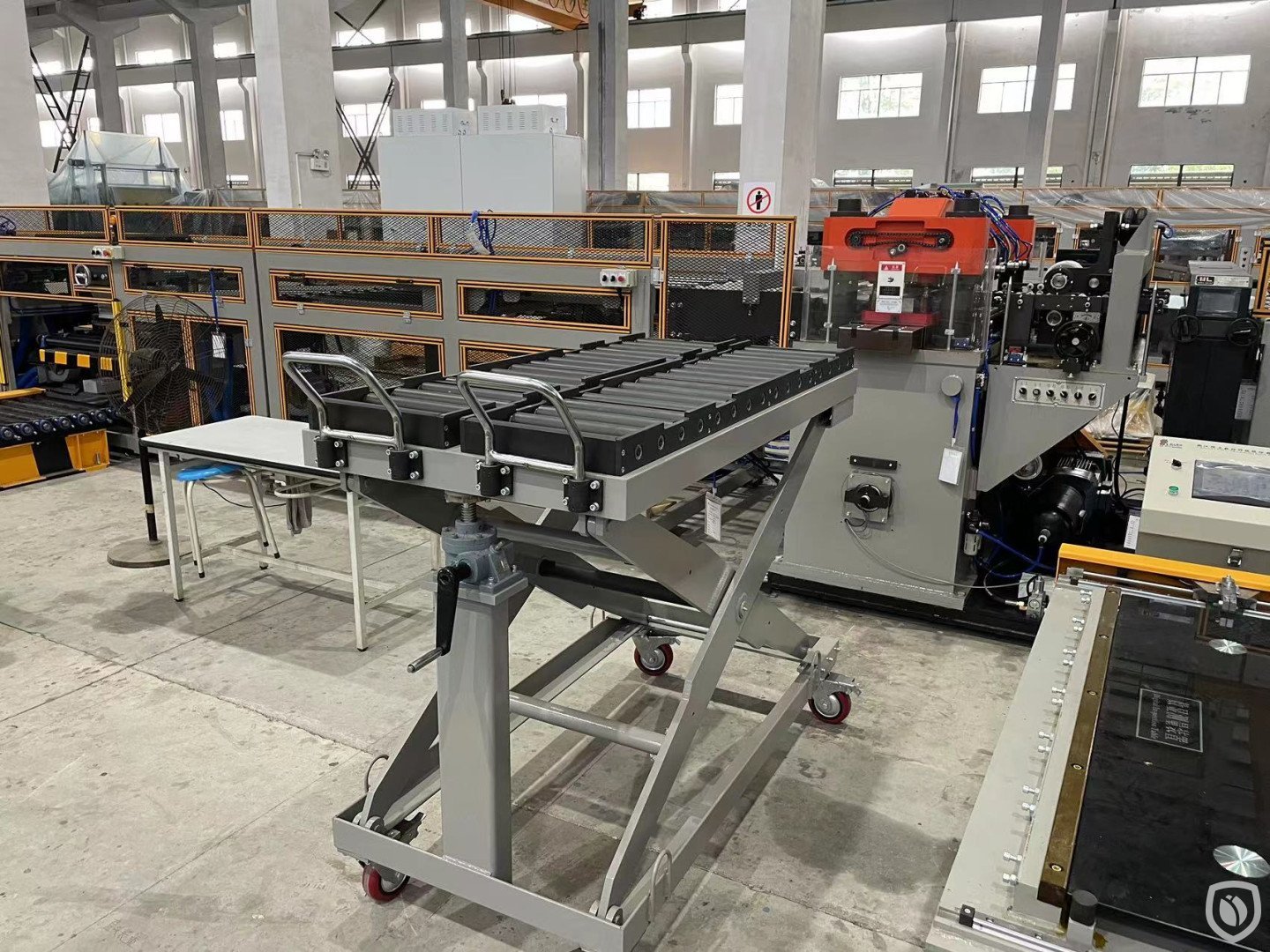

Quick change shear, belt converyor
Quick change shear, belt converyor

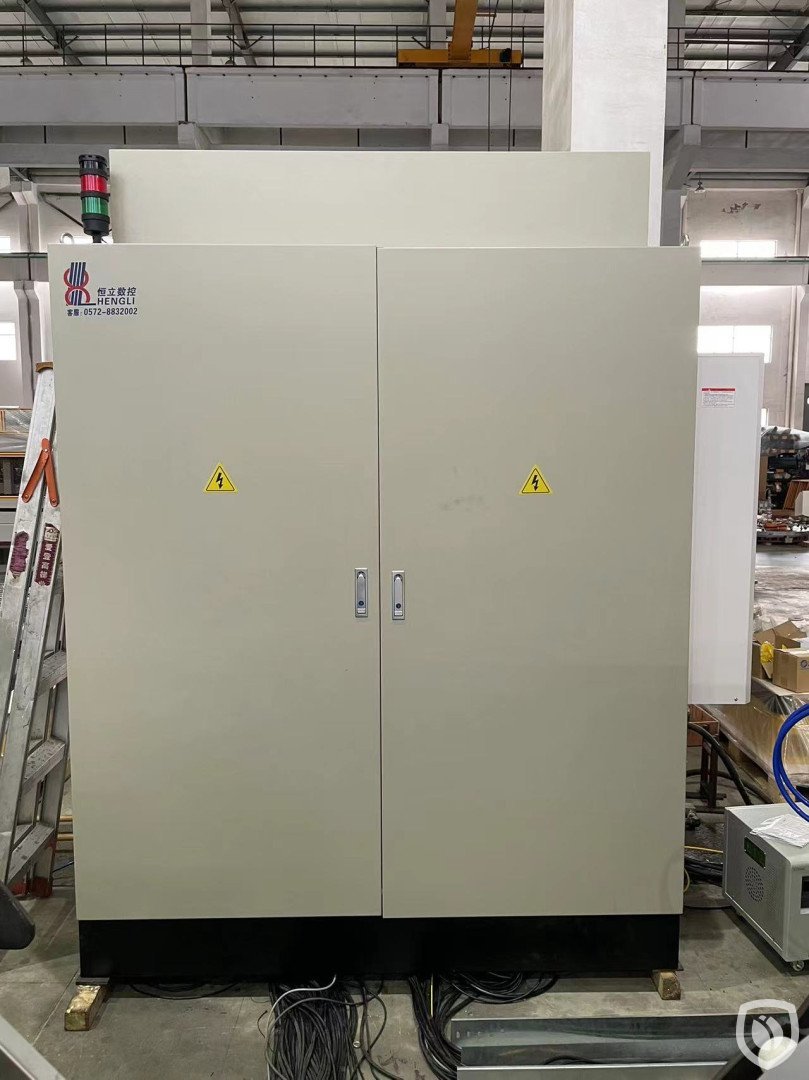

Electrical cabinet
Electrical cabinet

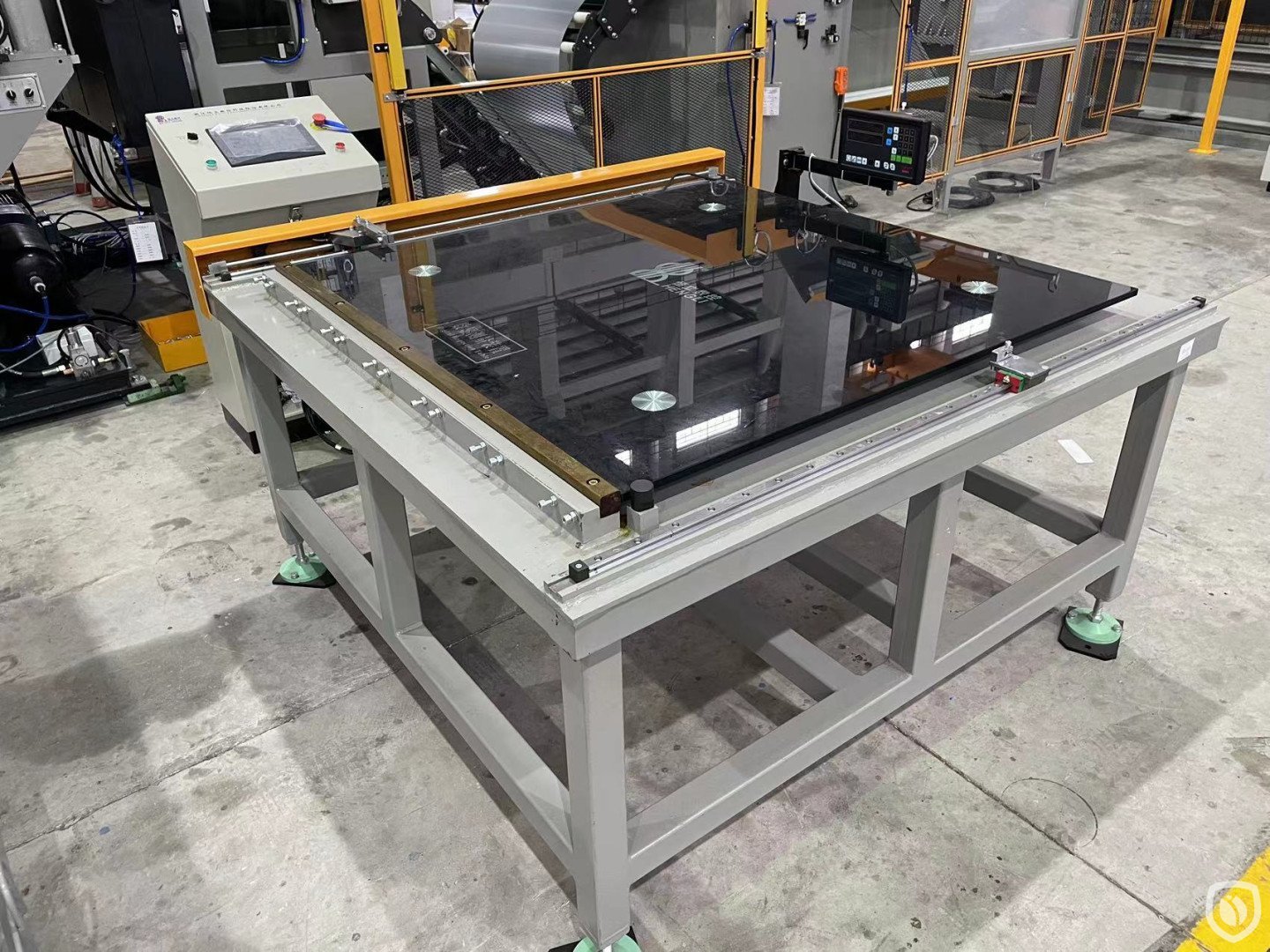

Inspection table
Inspection table

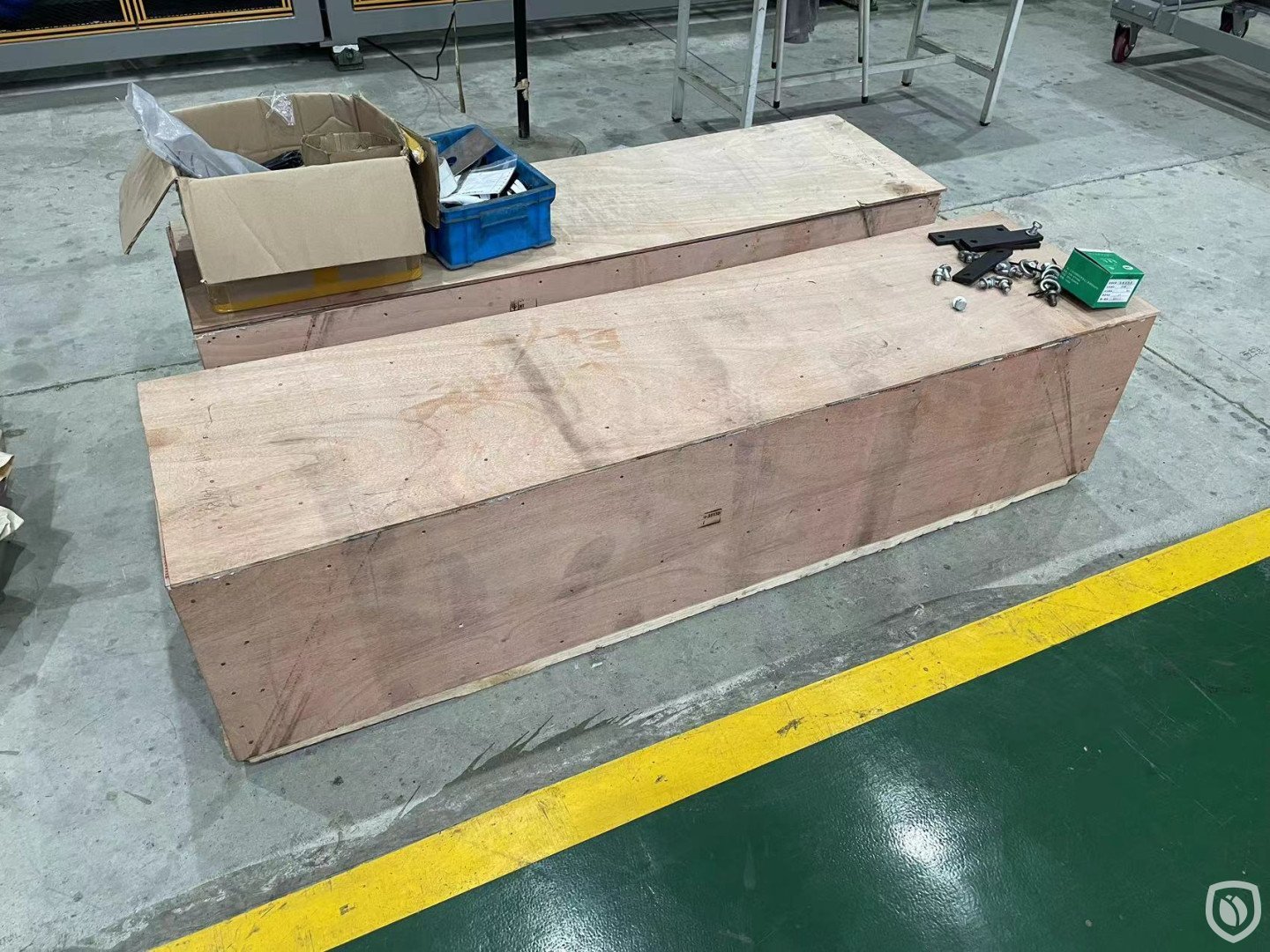

Toolings
Toolings
›
